Description
- Bluetooth range: no
- Occasion: Others
- Portable: No
- Platform: Other
- High-concerned chemical: None
- Cable features: Without cable
- Harness Feature: Others
- Sensor Technology: Others
- Electric: No
- Accessories Type: Motherboard
- Control Method: Push button
- With USB: no
- Controls Type: Others
- Enclosure material: Others
- Fastening type: Others
- is_customized: yes
- Model Number: XLL-N64-RGB MOD
- Compatible Nintendo Model: Nintendo64
- Compatible Brand/Model: Nintendo
- Brand Name: BitFunx
- Origin: Mainland China
- Item: RGB MOD CHIP
- Supports: For N64 Game Console NTSC

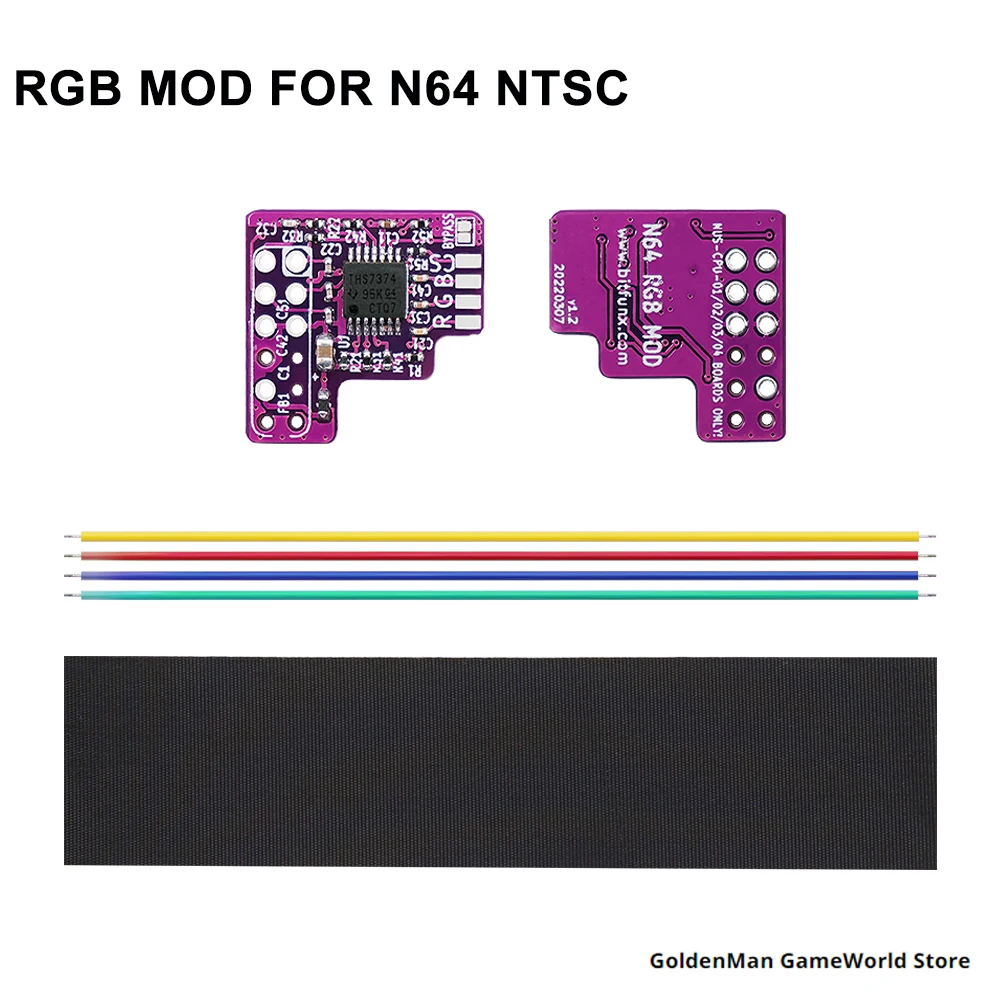

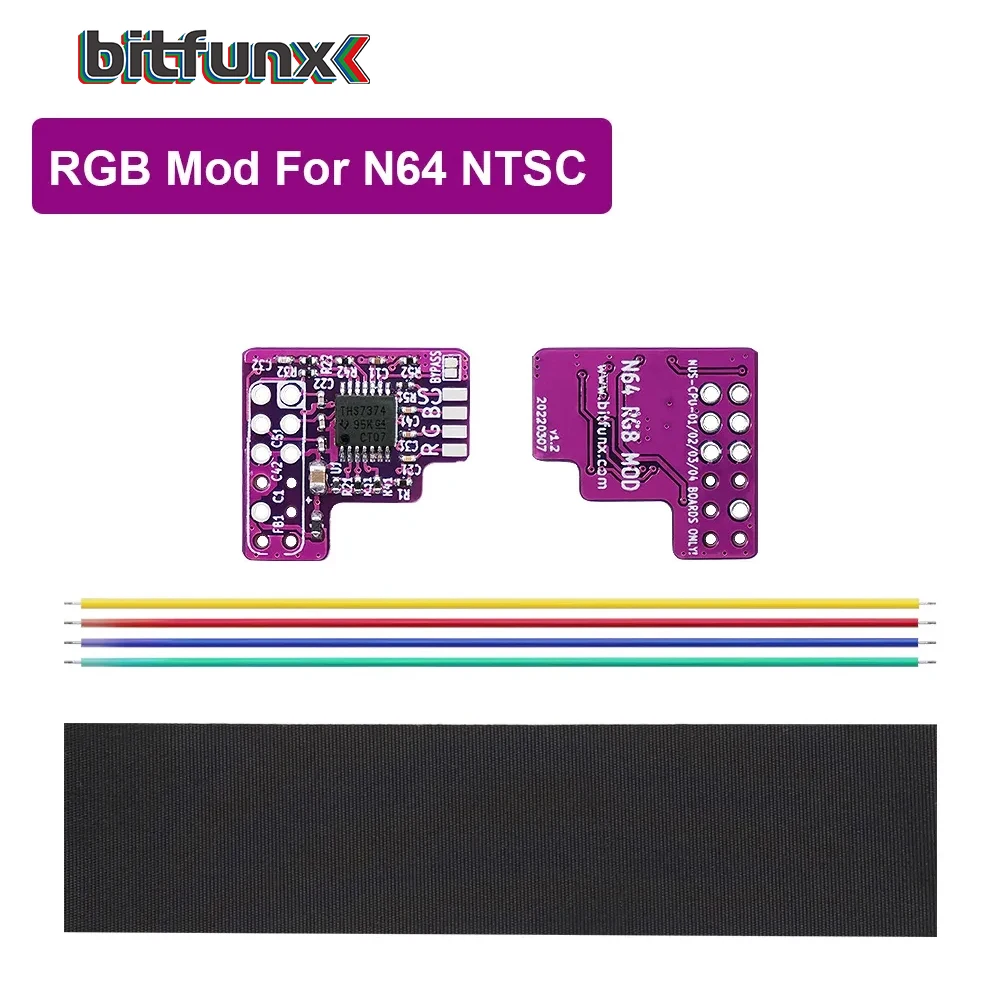

RGB MOD THS7374 Amp Mod Kit
Compatible Nintendo64 N64 Game Console NTSC
Any problems if you have , please contact us.

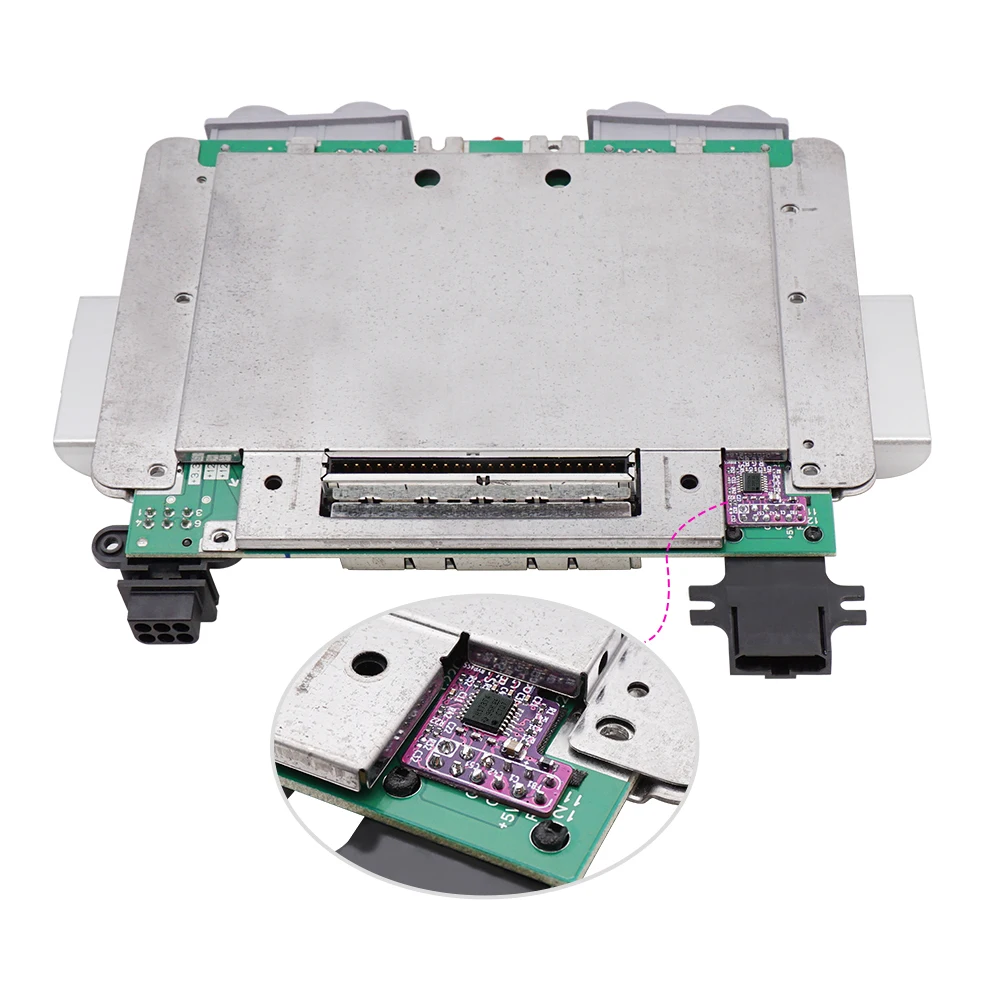

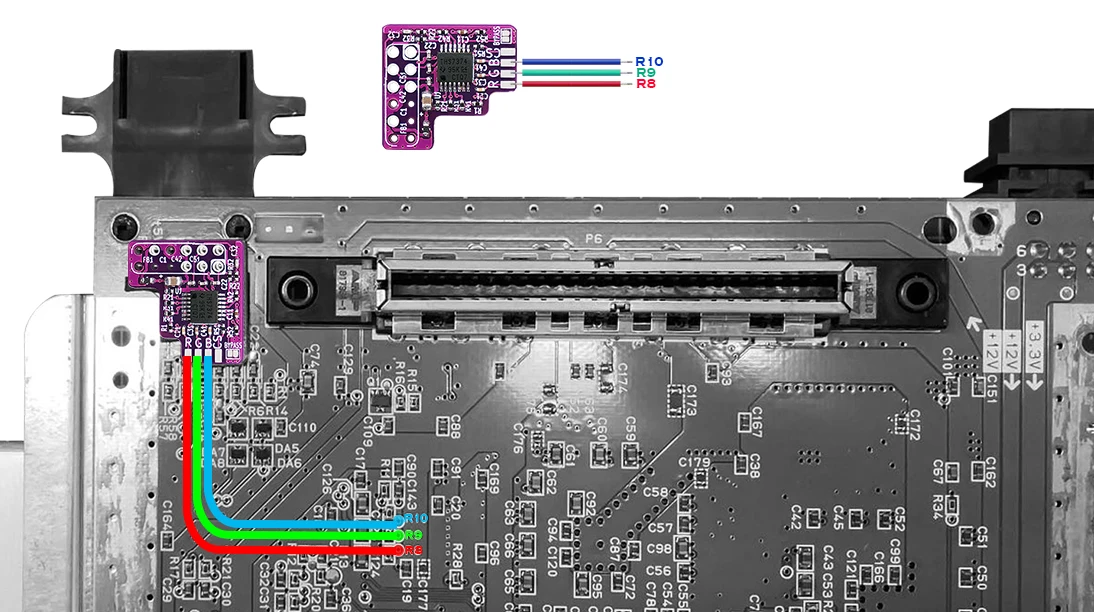

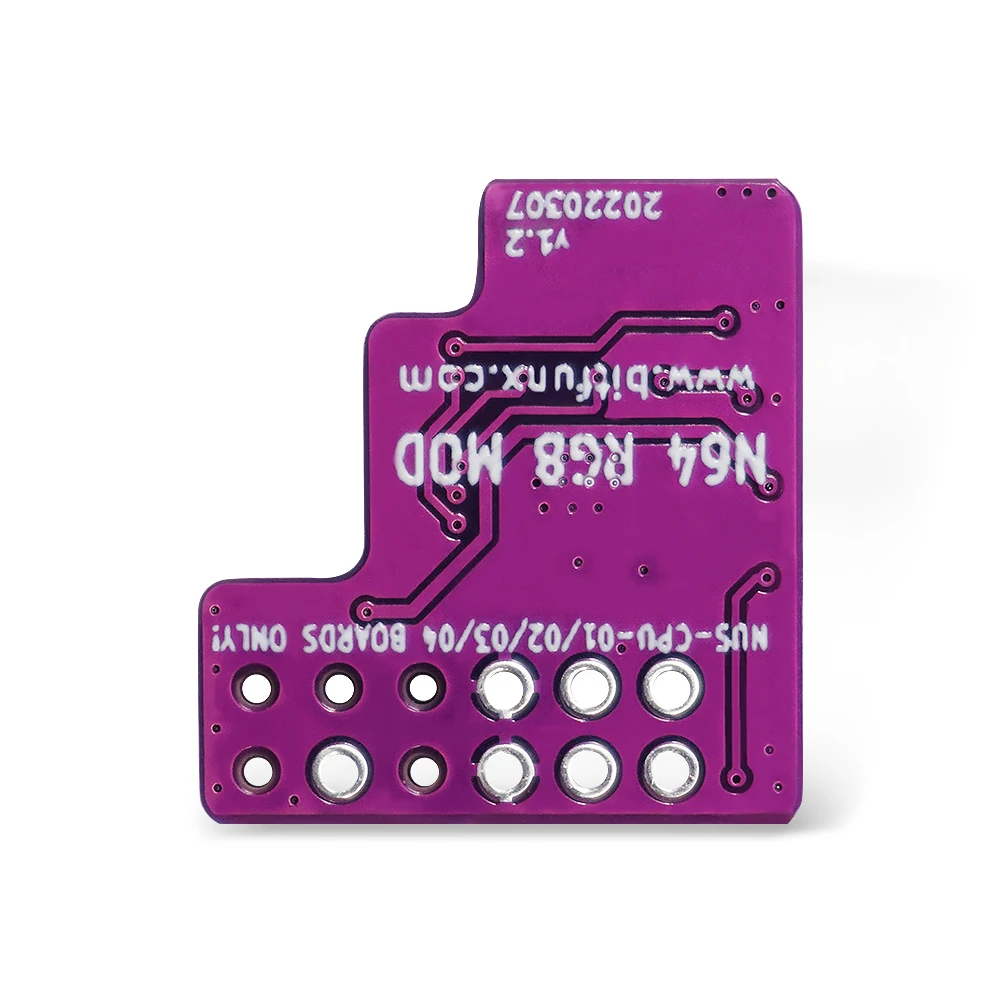

*****This modification only works with NUS-CPU-01/02/03/04 main board revisions!

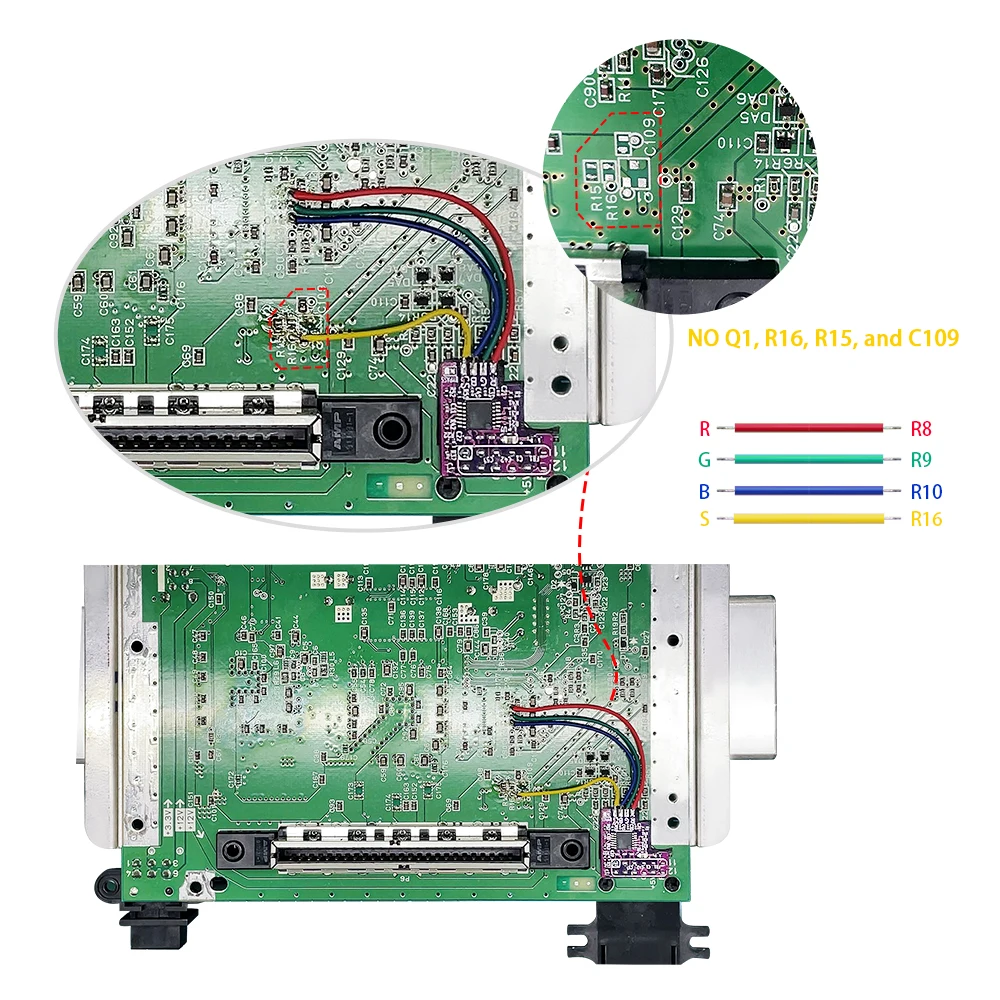

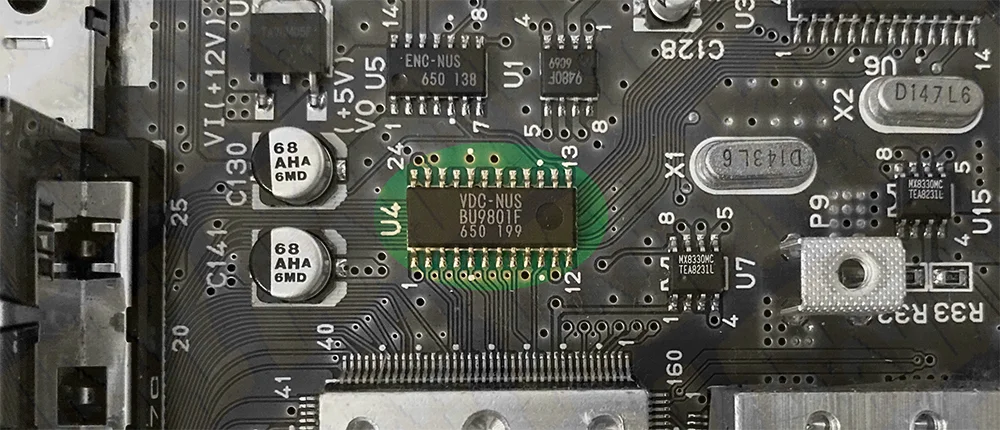

Also, verify that your main board has a 'VDC-NUS'/'VDC-NUS A' chip (U4).
If that's not the case – stop here! Your console is not compatible with this modding board!
What is this?

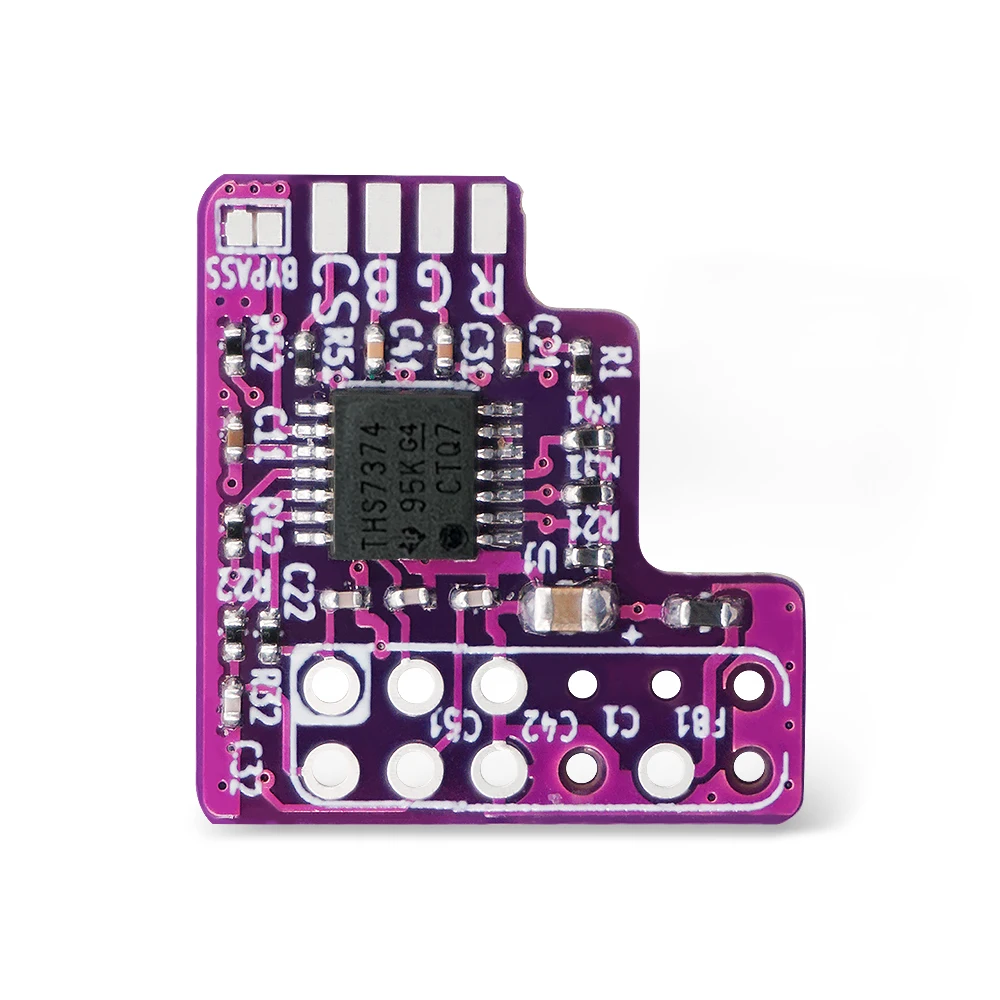

This is the RGB modchip for Nintendo 64 NTSC consoles.

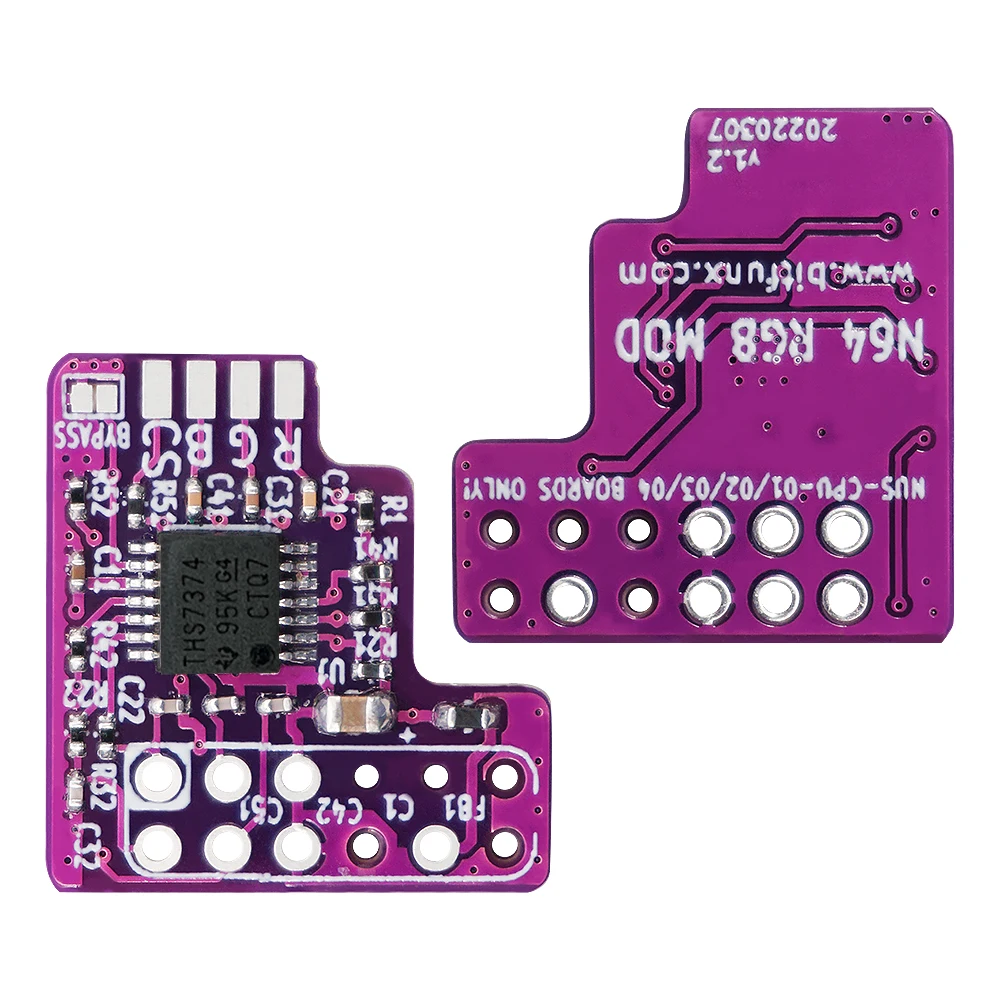

******Jumper 'Jbypass'
The THS7374 has a low pass filter on each of the four channels which can be turned on by shorting jumper 'bypass' on the modding board. This is mostly needed if you wire the console directly to a flat-screen TV. There's no need for the low pass filter on analogue devices.
If you use an OSSC or a Framemeister, it's better to use their filter options.
FEATURES
1）RGB mod uses THS7374 amp to display clearer and smoother images.

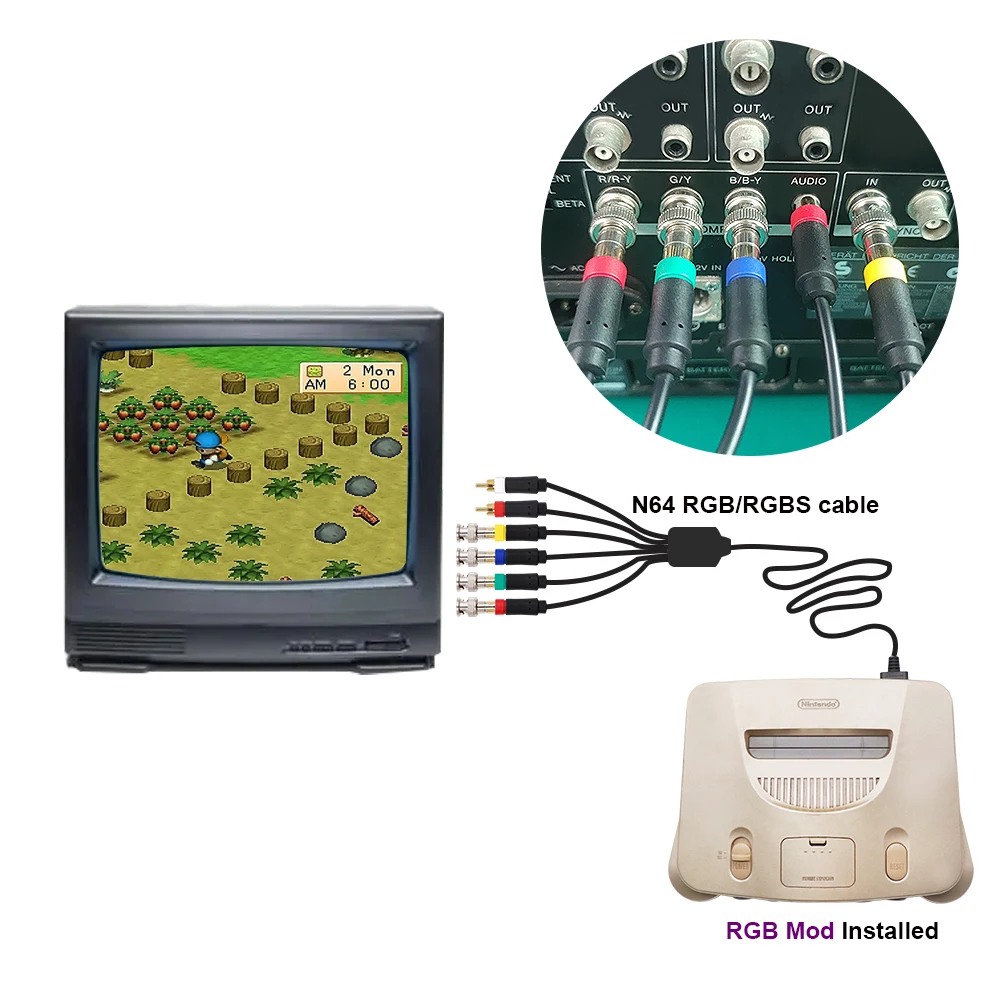

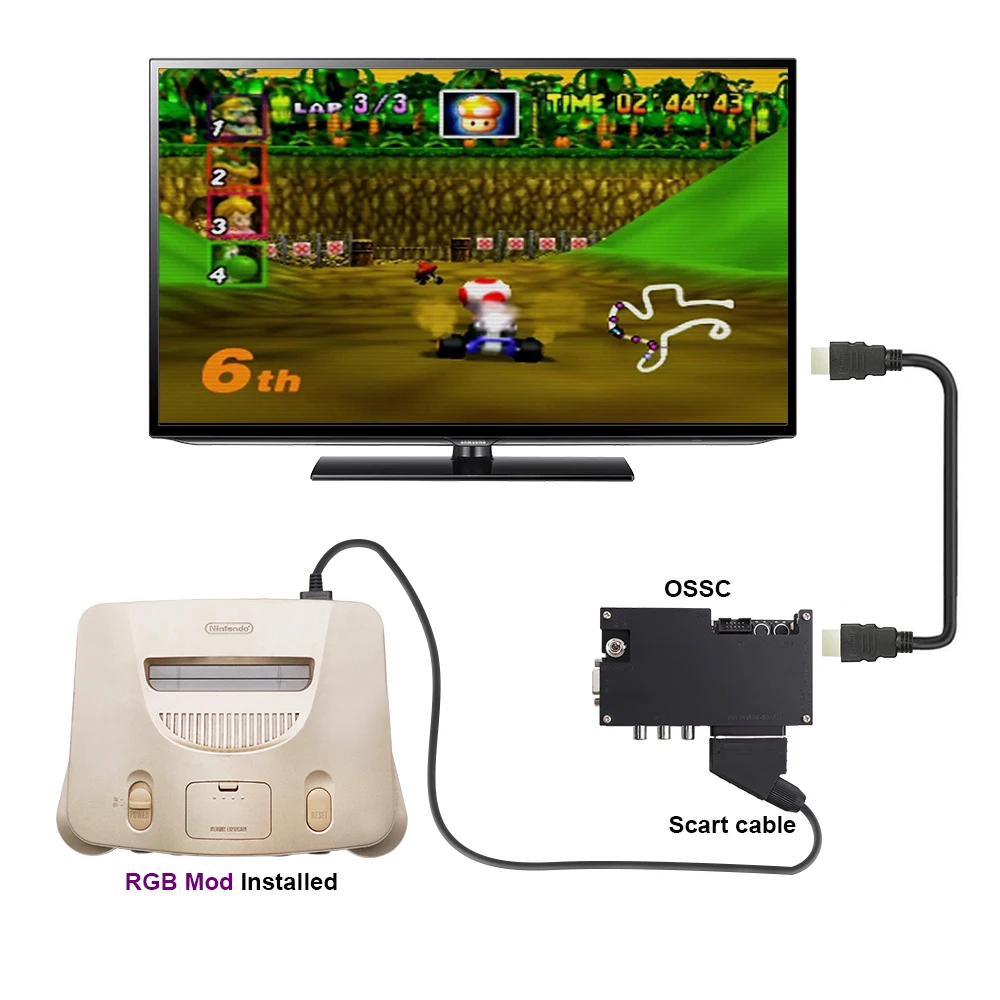

2）Can be directly connected to RGB Monitor(by N64 RGBS cable) or can be used with OSSC(by N64 SCART RGB cable).
How to find RGB-outputting NTSC N64 Systems:
1. If you have a serial number that starts with “NS1” (USA), “NUJ1” (Japan) or French systems with the model number “NUS-001(FRA)”, then you most likely have an N64 that’s compatible. Supposedly, some early
Canadian N64’s also contain this chip.
2.Many older Brazilian N64’s contain the same chip and can be RGB modded. Even though Brazil used PAL-M, is was still 60Hz and only compatible with NTSC games: http://s9.zetaboards.com/Nintendo_64_Forever/topic/7405289/1/
3. If you have a serial number that starts with anything else, or is a PAL console-Not compatible with this module.
